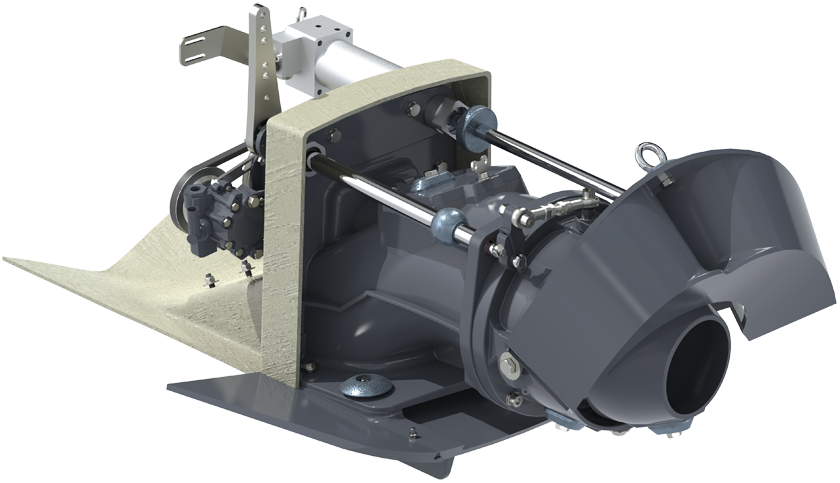

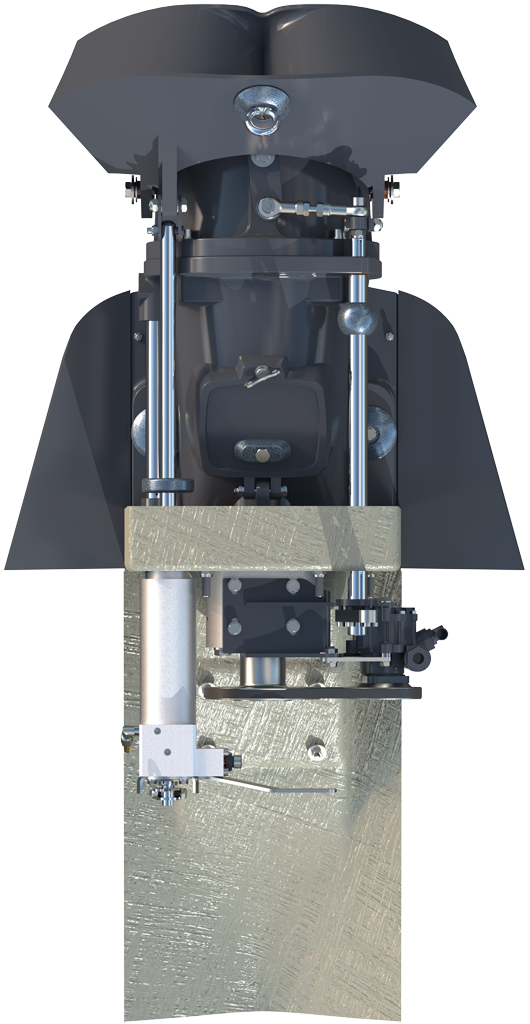

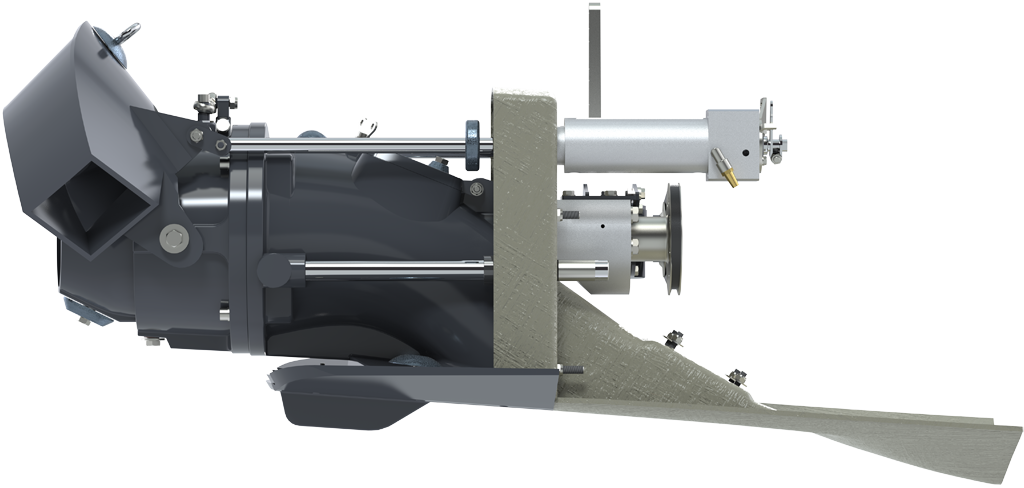

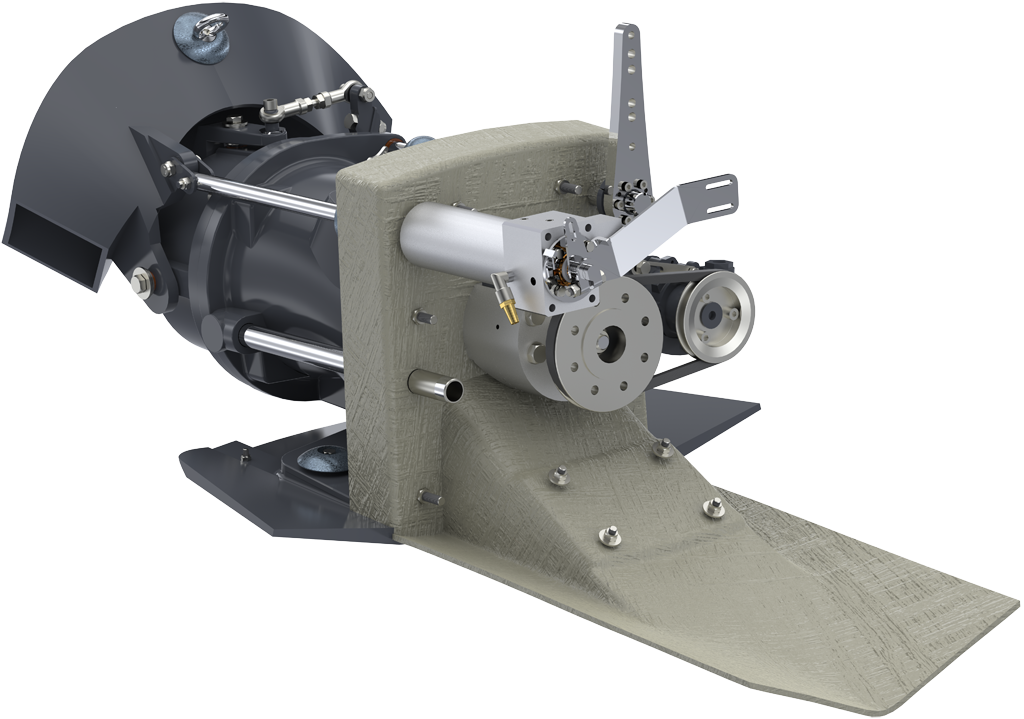

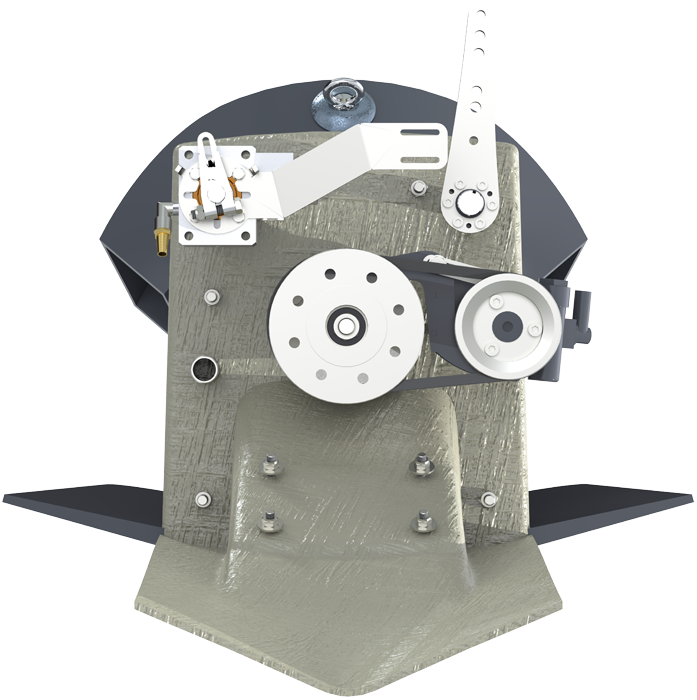

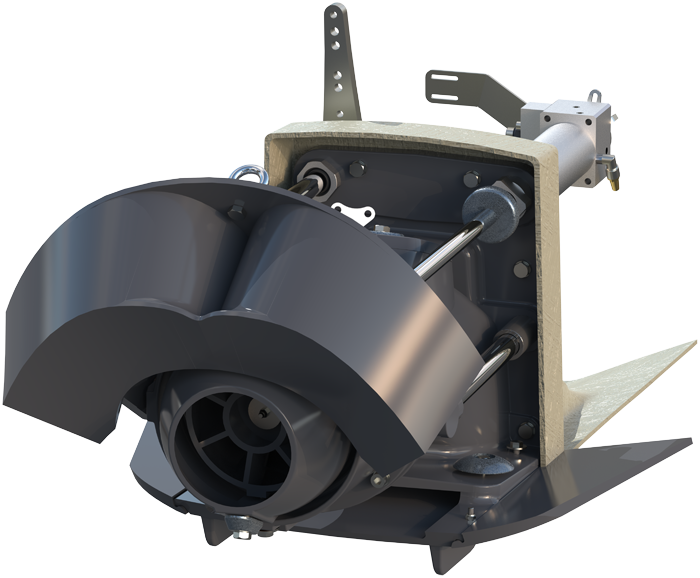

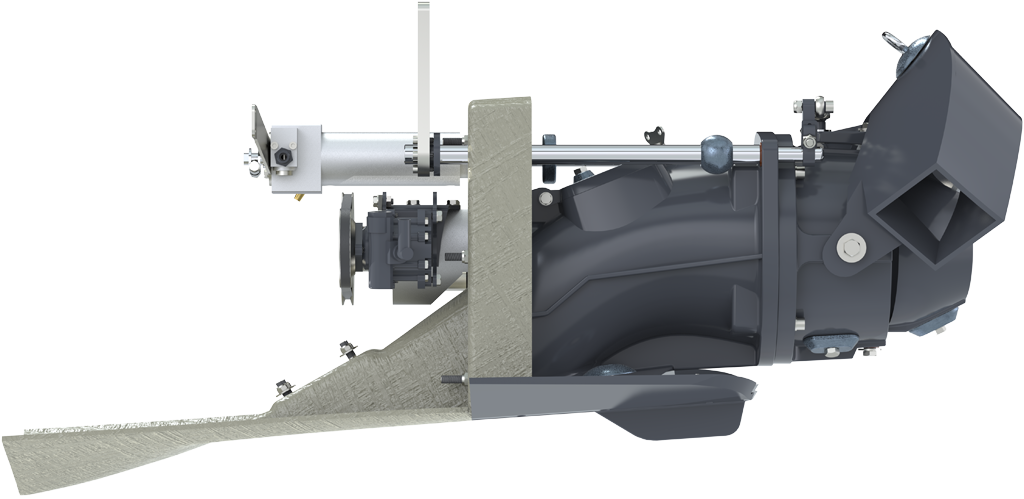

AJ 230 Waterjet

The best selling Alamarin-Jet product of all time

AJ 230 Waterjet is the best selling Alamarin-Jet product of all time, it is now the industry standard for SOLAS Fast Rescue Craft and is renown world wide for its extremely robust and simple design while maintaining high cavitation limits with high speed vessel performance.

Applications include SOLAS FRC, workboats, military vessels, pleasure craft and many more.

Features include:

  • Conical impeller housing
  • Grease lubricated main bearing
  • Grease lubricated rear bearing
  • Universal hydraulic system
AJ 230 Waterjet
AJ 230 Waterjet
AJ 230 Waterjet
AJ 230 Waterjet
AJ 230 Waterjet
AJ 230 Waterjet
AJ 230 Waterjet

ISO

9001

ISO

14001

ISO

45001
AJ 230 Waterjet
Dimensions Jet 230
A 448 mm / 17,65 in
B 1375 mm / 54.15 in
C 668 mm / 26,29 in
D 358 mm / 14,09 in

Specifications

  • Pump type
    Mixed flow

  • Jet construction
    Aluminium / Stainless Steel

  • Max impeller diameter
    228mm / 9″

  • Max impeller shaft RPM
    4600 1/min

  • Max input power
    190 kW / 260 HP

  • Jet weight
    81kg / 179lbs

  • Reverse deflector control
    Hydraulic
