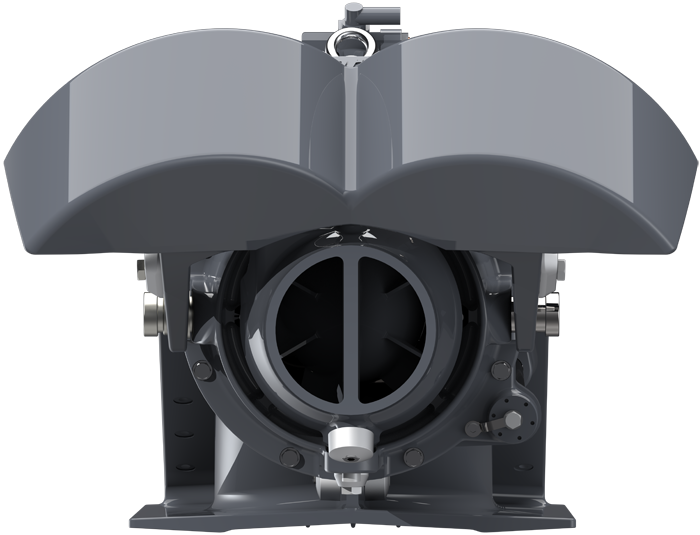

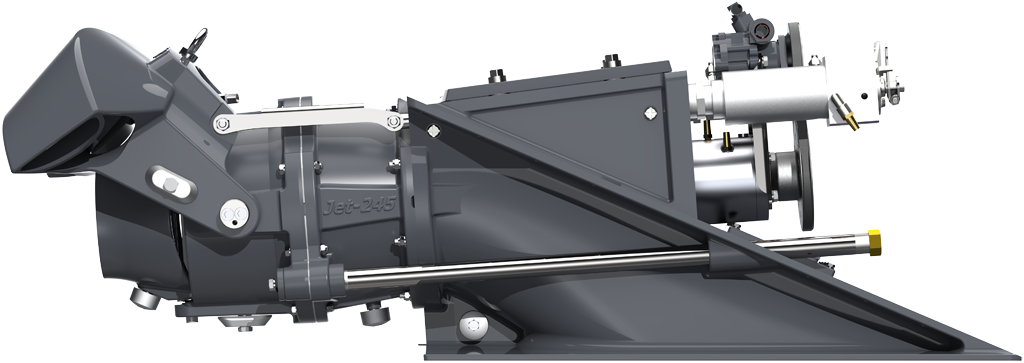

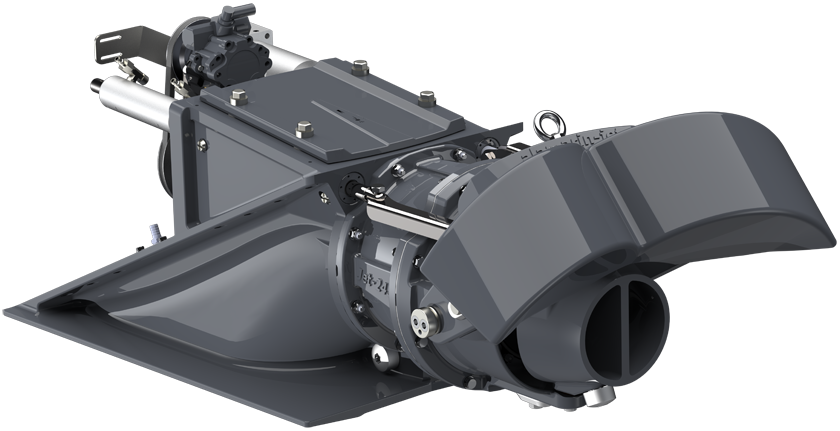

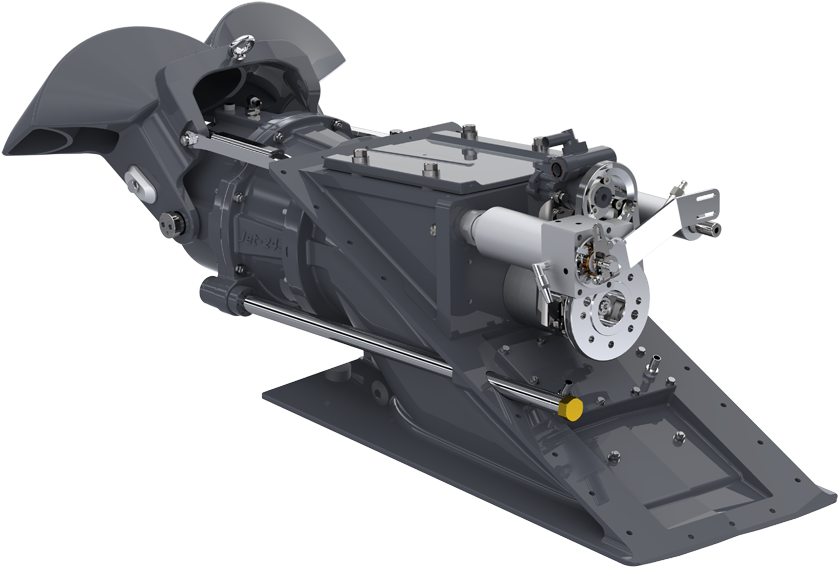

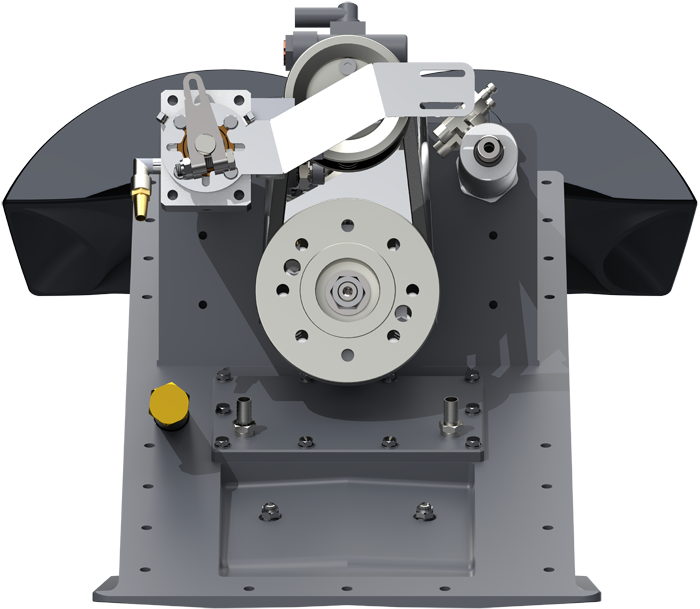

AJ 245 Waterjet

The first jet in the COMBI-FRAME series

The AJ 245 is the first waterjet in the COMBI-FRAME series. The patented Combi-Frame technology allows designers, builders and owners maximum flexibility when locating the position of the propulsion system within the vessel.

Choosing between 2 different hull installation inserts allows the waterjet to be installed either in LONG TAIL or SHORT TAIL configuration. Partner these features with class leading bollard pull, cavitation limits and acceleration the AJ 245 is the best performing waterjet of its size available.

Features include:

  • Conical impeller housing
  • Oil lubricated main bearing
  • Grease lubricated rear bearing
  • Integrated oil cooler
  • Patented COMBI FRAME installation method
  • Integrated steering cylinder
  • Universal hydraulic system

The AJ 245 waterjet is compatible with ACU and SIGMA Control System.

ISO

9001

ISO

14001

ISO

45001
AJ 245 Waterjet
Dimensions Long tail Short tail
A 429 mm / 16,9 in 429 mm / 16,89 in
B 1316 mm / 51,8 in
1316 mm / 51,83 in
C 584 mm / 23,0 in 584 mm / 23,0 in
D 390 mm / 15.4 in 390 mm / 15,35 in
E 279 mm / 11,0 in 640 mm / 25,21 in

Specifications

  • Pump type
    Mixed flow

  • Materials
    Aluminium / Stainless Steel

  • Max impeller diameter
    245mm / 9.6″

  • Max impeller shaft RPM
    4600 1/min

  • Max input power
    235 kW / 320 HP

  • Dry weight
    105kg / 231lbs

  • Reverse deflector control
    Hydraulic

Contact us for more information

If you want to learn more about this or our other models for your particular specifications and application, we are here to help you.
